RAMADDA recognizes any file that ends with types.xml as an entry type definition file.
Here is an
exampletypes.xml file and
there are numerous examples in the source code @ github,
e.g.
https://github.com/geodesystems/ramadda/tree/master/src/org/ramadda/geodata/point/resources
You can use the above xml file as a plugin. But, if you wanted to include html resources
you would have a zipped directory like:
someplugin
exampletypes.xml
htdocs
myplugin
Note: the names above do not matter except the types.xml
To make use of the types simply add the types.xml (or the zip file) into your RAMADDA Home/plugins directory
and restart RAMADDA.

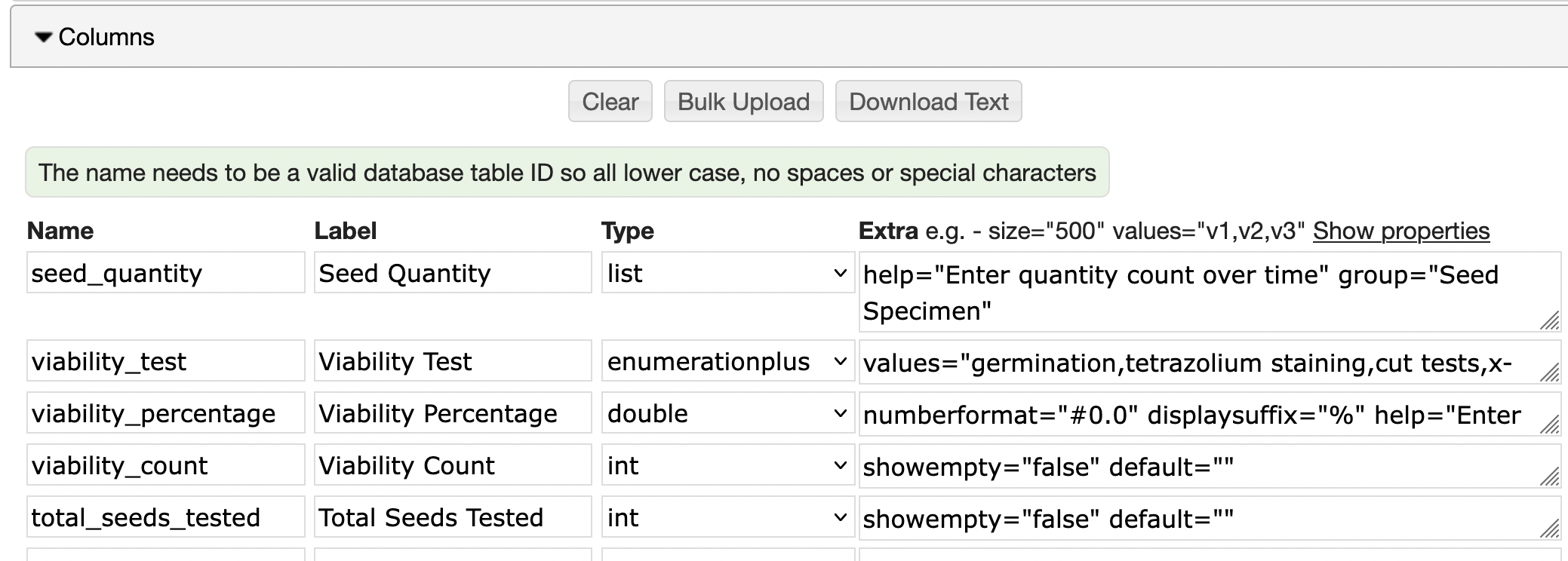

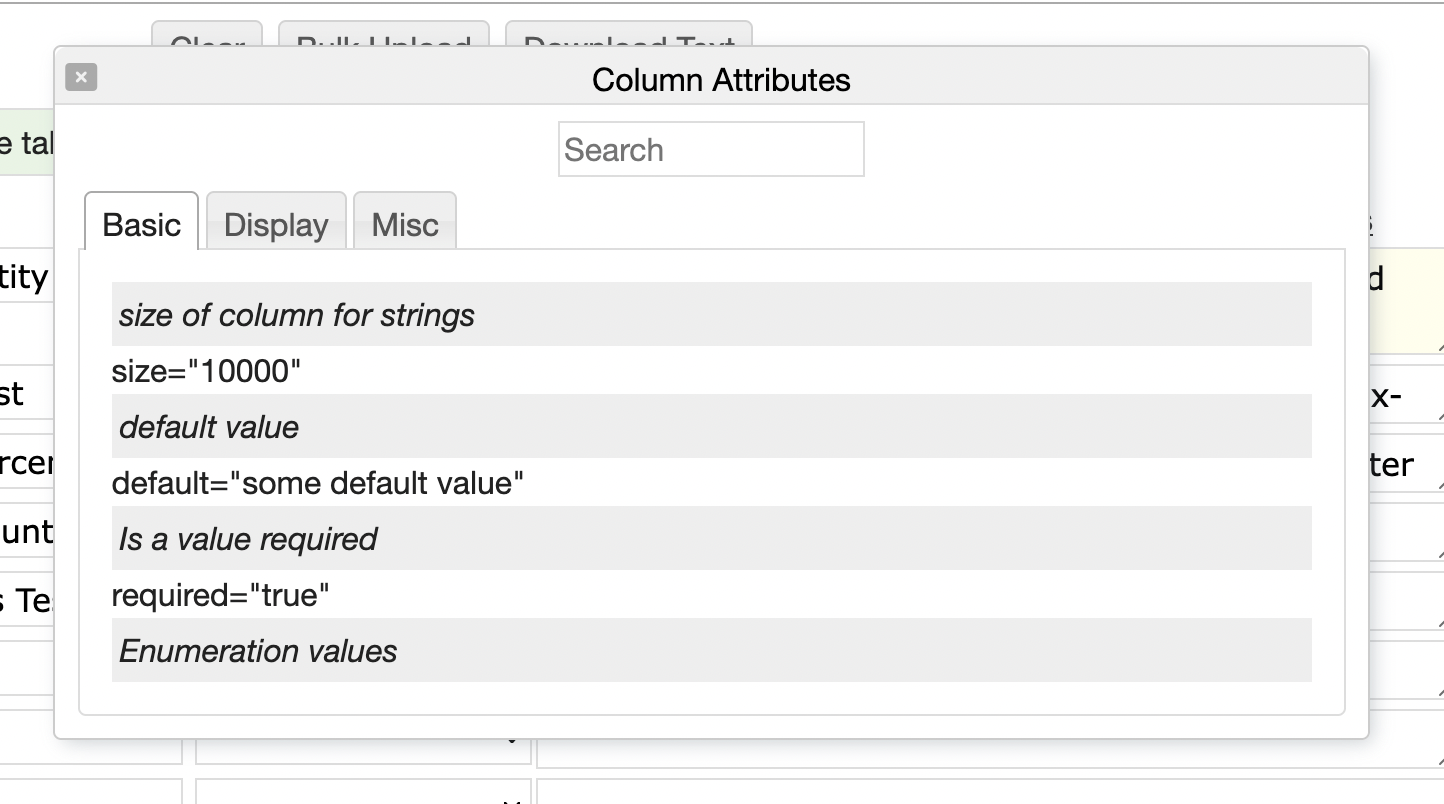

Each entry can have any number of column attributes. Each column (see in the example above) has a name, label, type, etc:
- string - Use size="..." to specify the column size
- enumeration - See below to specify values
- enumerationplus - Just like enumeration but allows use to enter new text values
- list - A big string internally but shows a list of newline separated text values to the user
- password - A string but is shown in a password field
- clob - A big character large object
- int - Integer
- double - floating point number
- percentage - floating point number shows as percentage
- boolean
- date - Just a date
- datetime - A date and a time
- email - Shows as an email address
- url - Shows as a URL
- latlonbbox - spatial bounds
- latlon - A single point
For enumeration or enumerationplus types you can specify a set of enumeration values.
<column name="fruit" label="Fruit" type="enumeration" values="apple,banana,orange" cansearch="true" />
An entry type can have a wiki tag that defines the wiki text template for the entry.
The example file above has an example of this wiki text, e.g.:
<wiki>
<![CDATA[
+section title={{name}}
:navtop
{{description wikify=true}}
:heading Charts
{{group}}
{{display type=linechart showMenu=true fields=discharge}}
{{display type=linechart showMenu=true fields=gauge_height}}
:vspace 0.5em
:heading Table
{{display_download}}
{{display_table}}
:vspace 1em
----
:heading Information
+row
+col-md-6
{{information details="true" showTitle="false" }}
-col
+col-6
{{map}}
-col
-row
-section
]]>
</wiki>
