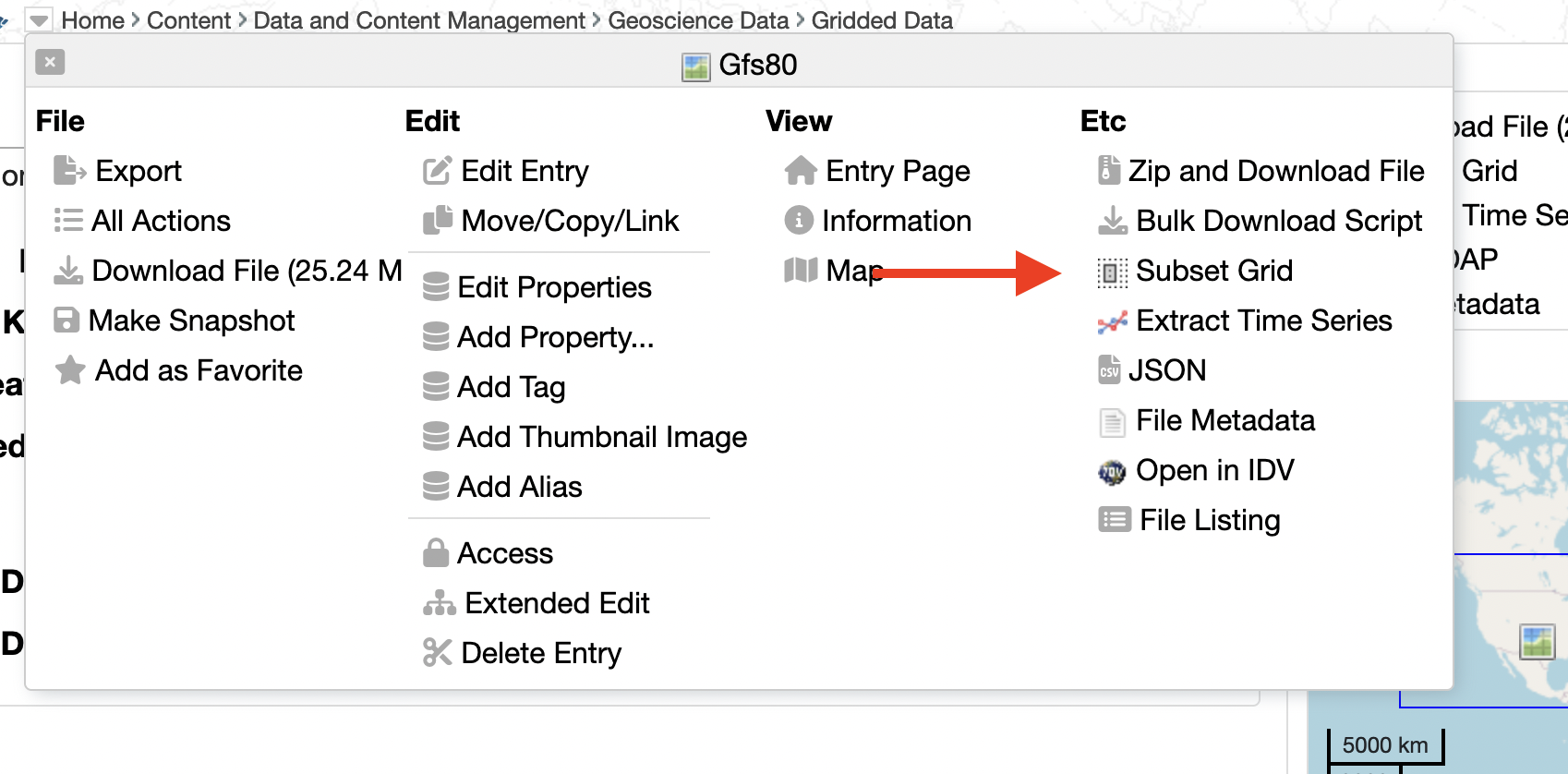

Repository entries that are recognized as grids (i.e, can be read by the netCDF-Java Common Data Model (CDM) grid reader (e.g. netCDF, GRIB, GrADS)) provide an option for creating subsets of the grids that can be downloaded or stored in the repository. From the Entry menu, select the Subset Grid:
images/datamenu.png?version=946

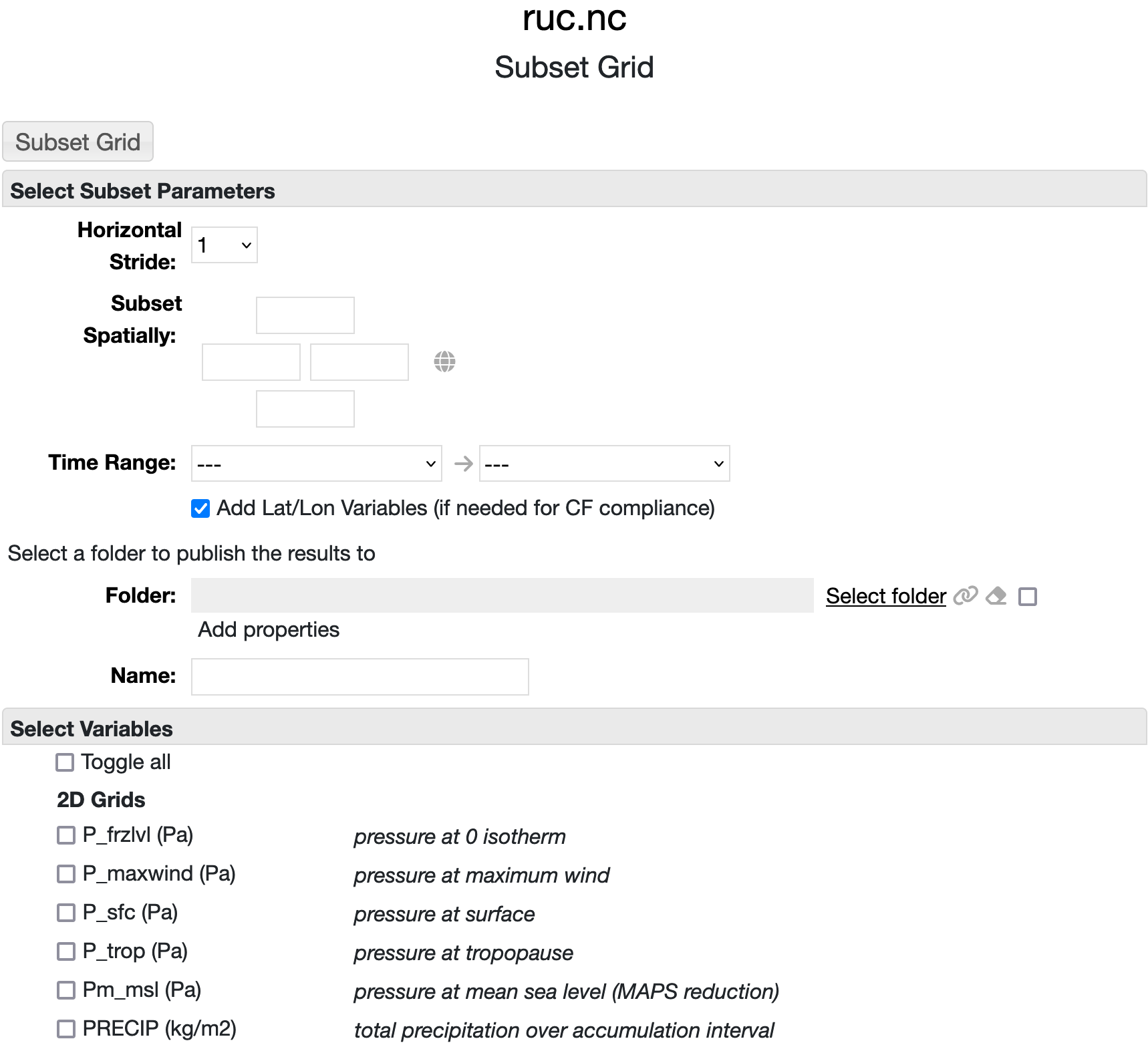

The Grid Subset form allows you to subset the grid by region, time and variable and will output the result to a CF compliant netCDF file.
images/gridsubset.png?version=946

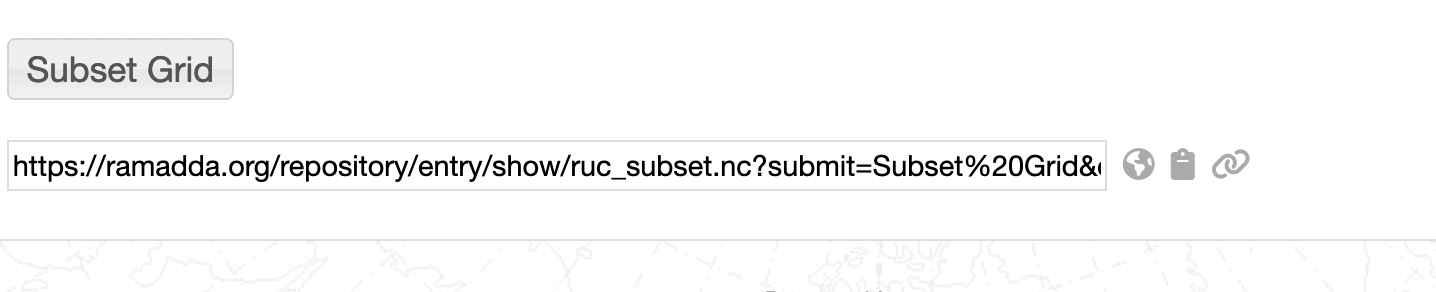

At the bottom of the subset form is a URL that is configured with any of the form setttings. You can use this to programattically access the grid, e.g., usin cURL.
images/gridsubsetlink.png?version=946

Options

  • Horizontal Stride
    Sample every Nth grid point where N is the stride value

  • Subset Spatially
    Enter the spatial bounds for the subset. Click on the Show Map link to pop up a map where you can select the bounds using Shift-Drag. The Clear link removes the selection.

  • Time Range
    Set the time range for the subset. Default is all times.

  • Add Lat/Lon Variables
    For the grid to be CF compliant, the latitude and longitude values at each point must be included in the file. If the grid is projected, the grid projection definition is also stored in the file, which is enough for some software packages.

  • Select a folder to publish the results to
    If you are logged in and have permission to add files to the repository, you can optionally add the file to the repository. Specify the Folder location and a name for the file.

  • Select Variables
    Select the variables that you wish to include in the output file.
